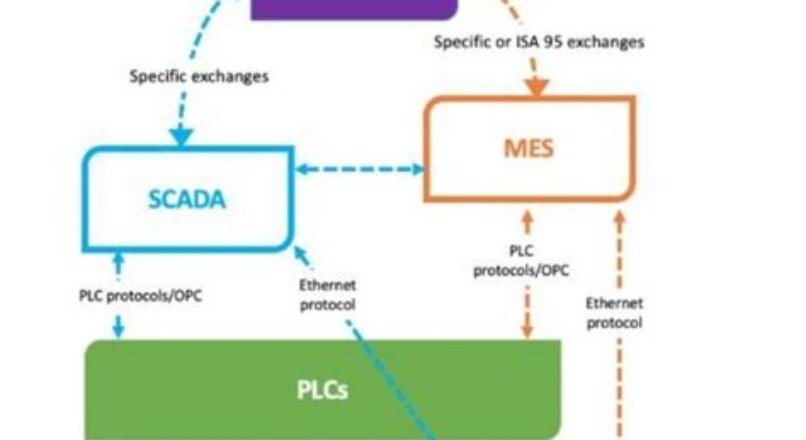

Integrating PLC with MES (Manufacturing Execution Systems)

In the dynamic world of manufacturing, the quest for efficiency, accuracy, and productivity is a relentless pursuit. At the heart of this industrial revolution is the seamless integration between Programmable Logic Controllers (PLC) and Manufacturing Execution Systems (MES), a symbiosis that is transforming factory floors into smart, responsive environments. As critical components of industrial automation, PLCs and MES when integrated, not only streamline operations but also pave the way for unprecedented levels of production intelligence. In this post, we unravel the various facets of connecting these two powerhouses — from the tangible benefits and step-by-step connection guide to the nuts and bolts of choosing appropriate communication protocols and ensuring real-time data transfer. We delve into how this synergy can turbocharge your production efficiency, optimize quality control, reduce downtime, and bolster decision-making with cutting-edge analytics. Strap in as we explore the present impact and future trends of PLC-MES integration, a nexus that is redefining the manufacturing landscape.

Benefits of integrating PLC with MES

Integrating Programmable Logic Controllers (PLC) with Manufacturing Execution Systems (MES) has become a cornerstone in modern industrial operations, offering a myriad of advantages that streamline production processes and enhance manufacturing outcomes. By fostering seamless communication between control-level equipment and execution systems, manufacturers can witness a marked improvement in their operational efficiencies. This integration plays a pivotal role in diminishing production waste, as the MES can instantaneously analyze data from the PLCs to make informed adjustments on-the-fly, substantially curtailing the risk of overproduction or resource misallocation.

Another significant benefit of PLC-MES integration is the elevation of product quality through enhanced monitoring and control. The relentless exchange of information between the shop floor and the MES ensures that any discrepancy or variation from the prescribed quality standards triggers immediate corrective actions, thereby ensuring that the final products meet the rigorous quality requirements imposed by industries and consumers alike. Furthermore, this integration facilitates the adherence to compliance and regulatory standards, providing a comprehensive audit trail that is indispensable in highly regulated sectors.

From a strategic standpoint, the union of PLCs and MES allows for heightened real-time data synchronization, giving managers unparalleled visibility into their production operations. This aspect is crucial for making data-driven decisions that can affect not just the immediate production run but also long-term strategic planning. With access to real-time analytics, decision-makers can identify bottlenecks, predict maintenance requirements, and optimize the entire supply chain. The real-time analytics derived from an integrated system empowers businesses to respond swiftly to changing market demands and operational challenges.

In summary, the fusion of PLC with MES undeniably bestows a competitive edge on manufacturers by slashing operational costs, skyrocketing production flexibility, and ameliorating overall equipment effectiveness (OEE). This integration not only paves the way for smart manufacturing practices but also sets a solid foundation for future advancements in the realm of industrial automation. As industries evolve, the ability to seamlessly integrate PLCs with MES will not only be desirable but imperative for staying ahead in an ever-competitive marketplace.

How to connect PLC with MES

Establishing a robust connection between a Programmable Logic Controller (PLC) and a Manufacturing Execution System (MES) is pivotal in bridging the gap between shop floor operations and higher-level manufacturing processes. As industries stride towards comprehensive digitalization, the importance of a seamless data flow can’t be overstressed, allowing for nuanced insights, precise control, and optimized operational efficiency. The initial step in this integrative journey involves a thorough assessment of existing infrastructure, ascertaining compatibility, and meticulously planning the integration strategy to ensure the systems harmonize without disrupting the manufacturing workflow.

Once the preliminary assessments are complete, it becomes essential to select a suitable communication protocol that ensures secure and efficient data exchange. Protocols such as OPC UA, MTConnect, or Ethernet/IP often serve as reliable conduits that facilitate the dialogue between a PLC and an MES. This step necessitates a careful consideration of both current and future needs, the scale of operation, and the specific requirements dictated by the production environment to guarantee that the chosen protocol can conform to the evolving landscape of industrial connectivity and data requirements.

Incorporating middleware or gateway solutions may be warranted to translate and route the data efficiently from the PLC to the MES. This ensures that both systems speak a common language, enabling the translation of low-level machine signals into actionable data that can be effectively utilized by the MES for monitoring, control, and analysis purposes. The intricacies of configuring these middleware systems demand a deep understanding of both PLC programming and IT systems, which is why enlisting expert assistance or engaging in comprehensive skill development may become an inevitable part of this process.

Lastly, to maintain an enduring and dynamic connection, it is crucial to implement a monitoring strategy to oversee the health of the PLC-MES integration. Regularly scheduled diagnostics, coupled with real-time alerts for any anomalies, will help in preemptively identifying and resolving any connectivity issues that may arise. Ultimately, the goal is to solidify a robust and adaptive integration, one that not only caters to current operational demands but also possesses the agility to evolve alongside the inexorable advancements in manufacturing technologies and practices.

Choosing the right communication protocol

In the intricate web of modern industrial systems, choosing the right communication protocol is paramount to ensure seamless data exchange and interoperability between Programmable Logic Controllers (PLCs) and Manufacturing Execution Systems (MES). This critical decision hinges upon a variety of factors, such as the scalability of the system, the required data transmission speed, and the inherent compatibility with existing infrastructure, all converging towards establishing a robust and efficient communication backbone for the industrial environment.

The vast array of industrial communication protocols, each with its unique features and specific use cases, demands a thorough analysis to ascertain the ideal fit for a given application. When embarking on the selection process, it is vital to contemplate factors such as the reliability of the protocol in an environment subject to electromagnetic interference, the latency tolerances of the production process, and the ease with which the communication protocol can be integrated into the broader factory-wide network. These considerations are the bedrock upon which a stable and responsive communication system is constructed, one that is conducive to adding layers of complexity, such as Internet of Things (IoT) devices or advanced analytics.

Moreover, the need for future-proofing the industrial ecosystem cannot be overstated; hence, the chosen protocol must not only satisfy immediate operational requirements but also have accommodation for impending technological advancements. The decision, therefore, entails not just a snapshot analysis but a far-sighted approach that takes into account the potential for future expansions, upgrades, and the integration of nascent technologies that could eventually dictate the direction of the industry. Such strategic foresight is essential to ensure that the communication framework serves not as a bottleneck, but as a conduit for growth and innovation.

Ultimately, the challenge of selecting the appropriate communication protocol is one that merits detailed investigation and meticulous planning. It involves a confluence of technical specifications, industry standards, and cost-benefit analyses, all of which culminate in a choice that can significantly influence the operational effectiveness of PLC-MES integration. By making an informed selection, businesses position themselves to leverage the full spectrum of benefits that come with a cohesive and seamlessly integrated industrial control system.

Setting up data exchange between PLC and MES

Establishing a seamless channel for data exchange between Programmable Logic Controllers (PLCs) and Manufacturing Execution Systems (MES) is a pivotal step in modernizing industrial operations. When these exchanges are structured correctly, the result is a highly efficient production line where real-time data informs decision-making and process improvements. Understanding the complexities of both systems is crucial, and it often begins with selecting the appropriate hardware and software interfaces that can handle the vast array of signals and convert them into actionable insights.

Initiating the data exchange process may involve configuring the network architecture to facilitate the continuous flow of information. This setup can be complex, as it needs to ensure that communication protocols are in place to match the formats required by both the PLCs and MES. It is essential to address considerations such as network latency and bandwidth requirements to maintain a real-time data ecosystem, enabling processes to respond swiftly to changing production conditions or quality parameters.

Moreover, the synchronization and mapping of data points between systems are pivotal for accurate and reliable data transfer. This stage of the setup necessitates a meticulous approach to aligning the digital representation of physical assets on the factory floor with their counterparts in the digital MES platform. Establishing this congruence ensures that the systems speak the same language, thereby avoiding costly miscommunications that could affect production schedules or product quality.

In the realm of industrial automation, the integration of the PLC with MES heralds a significant stride towards smart manufacturing. The fine-tuning of data exchange mechanisms serves as a backbone for technologies such as predictive maintenance and process optimization. With the right setup, the convergence of PLC and MES data streams fosters an atmosphere of innovation and contant improvement, poised to revolutionize industry standards for efficiency and productivity.

Ensuring real-time data synchronization

Ensuring real-time data synchronization between Programmable Logic Controllers (PLC) and Manufacturing Execution Systems (MES) is paramount for maintaining an efficient, responsive, and transparent manufacturing process. Without the certainty of instant data exchanges, manufacturers could face significant setbacks, including delayed decision-making and compromised process control. Real-time data synchronization allows for a seamlessly coordinated operation between the shop floor activities and the top floor strategic management, empowering stakeholders at all levels with the most up-to-date information.

As modern manufacturing environments become increasingly data-driven, the importance of implementing robust communication mechanisms that facilitate this synchronization cannot be overstressed. The integration of PLC systems with an MES must be meticulous, ensuring that the data transferred is not only consistent and accurate but also relevant and timely. This means that not only must the physical network infrastructure be reliable, but also the software protocols and interfaces must be meticulously designed to support the swift propagation of data. This infrastructure forms the backbone of proactive monitoring and process optimization, which are essential to a dynamic production landscape.

Several challenges, such as network latency, data format discrepancies, and clock synchronization, must be overcome to achieve real-time data synchronization. Manufacturers must, therefore, invest in systems that are capable of normalizing data at the source, aligning timestamps, and utilizing high-speed, real-time communication protocols that can prioritize and route data packets efficiently. Moreover, to ensure that the system is fault-tolerant, strategies such as redundancy, failover mechanisms, and continual verification checks are imperative. These strategies help in creating a resilient communication framework that can withstand disruptions and maintain the integrity of data synchronization.

Ultimately, the goal of ensuring real-time data synchronization is to create a feedback loop where operational intelligence is not hindered by technical delays. It’s about creating a digital thread that connects each sensor, actuator, and controller on the shop floor with the decision-making echelons of the MES. By achieving this level of integration, manufacturers are better-equipped to respond to changes with agility, improve process control, and maximize productivity—all of which contribute to sustained competitiveness in an ever-evolving industrial landscape.

Improving production efficiency with PLC-MES integration

Integrating Programmable Logic Controllers (PLC) with Manufacturing Execution Systems (MES) is not merely about technological amalgamation; it represents a strategic approach to improving production efficiency. By harnessing the capabilities of both systems, manufacturers can streamline processes, reduce manual intervention, and enhance the overall speed and agility of production lines. Such integration allows for a more granular level of control and monitoring, yielding significant improvements in throughput and efficiency.

The enhanced communication enabled by PLC-MES integration facilitates the rapid transfer of data, allowing production managers to make informed decisions based on real-time insights. This interconnectedness ensures that changes in production conditions are quickly identified and addressed, minimizing potential impacts on production continuity and performance. Moreover, the ability to adapt to new productions schedules or changes in operation requirements becomes markedly more fluid, directly contributing to improved operational efficiency.

Another critical advantage of integrating PLCs with MES is the fine-tuning of machine performance. Advanced analytics leveraged from MES can be utilized to pinpoint inefficiencies at the micro-level—a capability that traditional systems are often not equipped to handle. Real-time data processed through PLCs can then enact immediate adjustments in the machinery, optimizing the production process continuously and reducing the likelihood of bottlenecks or disruptions.

Furthermore, the synergistic relationship between PLCs and MES can lead to a significant reduction in energy consumption and material waste, contributing positively to sustainability goals. By providing detailed operational data, PLC-MES integration helps in identifying areas where resources can be conserved without compromising on quality or throughput. Collectively, these elements of improved efficiency foster a competitive edge for businesses seeking to thrive in the increasingly automated and data-driven landscape of modern manufacturing.

Optimizing quality control through integrated systems

The integration of Programmable Logic Controllers (PLCs) with Manufacturing Execution Systems (MES) has ushered in a transformative approach to optimizing quality control within manufacturing environments, intensely sharpening the precision and reliability of quality assurance processes. This synergy anchors itself on the philosophy that enhanced communication and streamlined data flow between the shop floor and the top floor is pivotal to ensuring that quality benchmarks are not only achieved but also consistently surpassed.

Utilizing the meticulous nature of PLCs to execute control commands with high accuracy, in tandem with the MES’s capacious ability to process and analyze vast swatches of production data, establishes a formidable, unified force that perpetuates a proactive, rather than reactive, model of quality control management. These integrated systems form an almost sentient network, adept at detecting deviations in real-time, and are capable of initiating corrective measures instantaneously, thereby significantly diminishing the incidence of defective products escaping the vigilant gaze of quality control protocols.

Moreover, the fusion of these sophisticated technologies engenders a data-rich environment where historical and real-time data coalesce to provide insightful analytics, enabling not only the identification but also the rectification of systemic issues that may underpin quality challenges. The partnership of PLC and MES systems allows for a level of data granularity that elicits the root causes of quality impediments, yielding a powerful data-driven scaffold upon which continuous improvement of quality control processes is built and sustained.

As the advent of the Fourth Industrial Revolution propels industries toward heightened levels of digitization, the role of integrated systems in enhancing quality control becomes ever more paramount. Leveraging PLCs and MES together furnishes manufacturers with the toolkit necessary to adapt to dynamic market demands while still holding the standardization and uniformity of products in the highest regard – an absolute non-negotiable in achieving and preserving a competitive edge in the relentless theater of modern manufacturing.

Reducing downtime and increasing machine availability

Reducing downtime in manufacturing environments is paramount to boosting the overall productivity and efficiency of the production line. Downtime can lead to missed deadlines, increased labor costs, and lost opportunities for revenue generation. On the other hand, increasing machine availability ensures that the equipment is ready to perform whenever it is needed, limiting interruptions in the production process and fostering a more reliable and consistent workflow.

Integrating a Programmable Logic Controller (PLC) with a Manufacturing Execution System (MES) presents a compelling solution to tackle both these issues. By enabling seamless communication between the manufacturing floor and management levels, these integrated systems can predict potential failures and schedule maintenance activities effectively, thereby minimizing unexpected machine downtimes. Furthermore, the real-time data provided by the PLC can help the MES to allocate resources more efficiently, maximizing machine usage and ensuring the availability of equipment with minimal lag time.

The utilization of advanced diagnostic tools and predictive analytics, afforded by the integration of a PLC with an MES, allows maintenance teams to anticipate breakdowns before they occur. This proactive approach to machine maintenance ensures that interventions are scheduled during non-peak periods, thus reducing the impact of maintenance activities on the production schedule. Consequently, this not only reduces downtime but also extends the overall lifespan of the machinery, as regular maintenance helps prevent the escalation of minor issues into major malfunctions.

In summary, integrating a PLC with an MES can greatly contribute to reducing downtime and increasing machine availability in a manufacturing setting. By facilitating the transition from reactive to proactive maintenance, providing real-time operational insights, and enabling smarter resource allocation, such an integrated system supports a more robust, effective, and uninterrupted manufacturing process, which in turn leads to significant cost savings and increased competitiveness in the market.

Enhancing decision-making with real-time analytics

In the fast-paced world of manufacturing, the ability to make informed decisions swiftly can mark the difference between a thriving business and a struggling one. With the integration of Programmable Logic Controllers (PLCs) and Manufacturing Execution Systems (MES), organizations are unlocking the potential of real-time analytics to amplify their decision-making processes. Through the continuous monitoring and analysis of production data, stakeholders are able to receive instantaneous reports, which are instrumental in identifying trends and making predictions that guide strategic choices.

The true power of real-time analytics lies not only in the provision of live data but also in the contextual interpretation it offers. By melding data from PLCs with insights from MES, manufacturers can comprehend the complex interplay between various factors such as machine performance, quality control, and throughput. This nuanced understanding enables managers to unearth and address inefficiencies rapidly, thereby elevating the entire operational performance to an unparalleled standard.

Furthermore, when real-time analytics are harnessed effectively, the agility of an organization’s response to fluctuating market demands can be substantially improved. Decision-makers are empowered to pivot production protocols instantly in reaction to consumer preferences, stock requirements, and resource availability. By fostering a deep integration between PLCs and MES, the once unwieldy process of matching production output with current market conditions becomes a seamless and practically automated endeavor, cut short in time and elevated in accuracy.

Lastly, the strategic incorporation of real-time analytics into the manufacturing arena promotes an environment where proactive rather than reactive measures become the norm. Anticipating machine maintenance needs before they manifest as downtime, adjusting production schedules to accommodate unexpected order spikes, and optimizing energy utilization based on real-time consumption patterns are merely a few examples of the enhanced decision-making capabilities that come from the seamless PLC-MES integration. These advancements are not a distant future promise but a very attainable present reality, driving the manufacturing industry towards a more efficient, resilient, and competitive future.

Future trends in PLC-MES integration

As we delve into the future of industrial automation, the integration of PLCs (Programmable Logic Controllers) and MES (Manufacturing Execution Systems) will continue to be pivotal in driving efficiency and innovation. The advent of the Industrial Internet of Things (IIoT) promises to take this integration to unprecedented levels, enabling highly adaptive and intelligent manufacturing environments. With continuous enhancements in sensor technology and data analytics, the future foretells an ecosystem where real-time adjustments and predictive maintenance become routine, significantly mitigating downtime and improving operational agility.

Focusing on the trajectory of cyber-physical systems, the integration process is envisioned to become more seamless, with PLCs and MES communicating effortlessly through standardized protocols that support interoperability and modularity. This standardization is expected to reduce integration costs and complexity, allowing manufacturers to focus on core competencies. Moreover, the emerging trends suggest the evolution of MES to be increasingly cloud-based, offering scalability and flexibility to manage various aspects of production, from quality control to supply chain management, across multiple facilities worldwide.

Stepping into the realm of artificial intelligence and machine learning, future PLC-MES integrations will likely leverage these technologies to provide more predictive capabilities and autonomous decision-making. The role of PLCs will evolve beyond the standard logic controllers to be more data-centric, acting as nodes that not only control but also gather and preprocess vast amounts of data for the MES to analyze. Such advancements are anticipated to enhance the capability of MES systems to make real-time decisions that optimize production processes and improve product quality.

In conclusion, the future trends in PLC-MES integration showcase a clear move towards smarter, more connected, and more efficient manufacturing processes. The synergy of PLC and MES systems, augmented by digital technologies such as IIoT, cloud computing, AI, and standardized communication, stands to redefine the manufacturing landscape. Consequently, businesses that embrace these integrative innovations will be well-positioned to meet the challenges of an increasingly dynamic market, ensuring long-term success and competitiveness.

Frequently Asked Questions

What are the main advantages of integrating PLC with MES?

Integrating PLCs with MES optimizes manufacturing processes by providing real-time data for monitoring and control, improving production efficiency, enhancing quality control, reducing downtime, and supporting better decision-making with accurate analytics.

Can you elaborate on how a PLC is typically connected to an MES?

A PLC is connected to an MES through either wired or wireless communication networks using industrial protocols such as OPC UA, MQTT, or Modbus. The connection is established to facilitate data exchange and ensure that the MES can control and monitor production processes in real-time.

How do I choose the right communication protocol for PLC-MES integration?

Choosing the right communication protocol depends on several factors, including the compatibility with existing systems, the need for real-time data transfer, data security requirements, and the complexity of the processes. Industry standards like OPC UA are commonly used for their reliability and security features.

What are the crucial steps in setting up data exchange between a PLC and an MES?

Setting up data exchange involves establishing a communication link between the PLC and MES, configuring the PLC to collect and send data, setting up the MES to receive and process data, and ensuring that the data mapping between the systems is accurate to facilitate meaningful interaction.

Why is real-time data synchronization essential in PLC-MES integration?

Real-time data synchronization is essential to provide immediate visibility into the manufacturing process, allowing for timely interventions, adjustments and optimization. It helps in making informed decisions to prevent potential issues, avoid production delays, and maintain consistent quality.

In what ways does PLC-MES integration contribute to improving production efficiency?

PLC-MES integration allows for automated control of manufacturing processes, minimizing manual input and errors. It streamlines operations by enabling efficient scheduling and resource allocation, reduces waste by pinpointing inefficiencies, and shortens response times to issues on the production floor.

What are some of the future trends anticipated in PLC-MES integration?

Future trends in PLC-MES integration include the adoption of Industrial Internet of Things (IIoT) technologies, increased use of artificial intelligence and machine learning for predictive maintenance and analytics, and the integration with advanced robotics for smarter, more autonomous manufacturing environments.
